Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: HUABANG
  • Model Number: DDM30SC
  • Display Type: Digital Only
  • Phase: Single Phase
  • Measuring Energy Range: 5(32)A 5(50)A
  • Accuracy Class: Class 1.0
  • Output Voltage: 220v/230v/240v
  • Operating Temperature: -10°C ~ +60°C
  • Dimensions: 90*66*18mm
  • Type: DIN Rail mounting energy meter
  • Range: 999999.9 kWh
  • Standard: IEC62052-11/IEC62053-21
  • Certificate: ISO9001:2015 CE ROHS LVD EMC
  • Display: LCD Display
  • Frequency: 50HZ/60HZ

Packaging & Delivery

Packaging Details Package of Energy Meter:
Inner 10 pcs per package ;Carton 100pcs per package
Delivery Time 3 days after payment



Company Information



DDM30SC smart Single Phase DIN Rail Digital Electricity Meter



Din Rail Meter

Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.
The DIN rail mounted electricity meters are available in two product lines: single phase metering and three phase metering.
The meters are available in several configurations to suite many applications.

With the increasing energy cost, measuring of the electricity consumption is getting more and more important.
If you can identify where you have your use you are one step closer to reducing your energy cost.
HUABANG have a complete range of DIN-mounted electricity meters for different applications, together with a wide range of communication options. The meters are quick and easy to install due to their DIN-rail mounting.



Specification:



Mounted: 35mm standard DIN rail installation

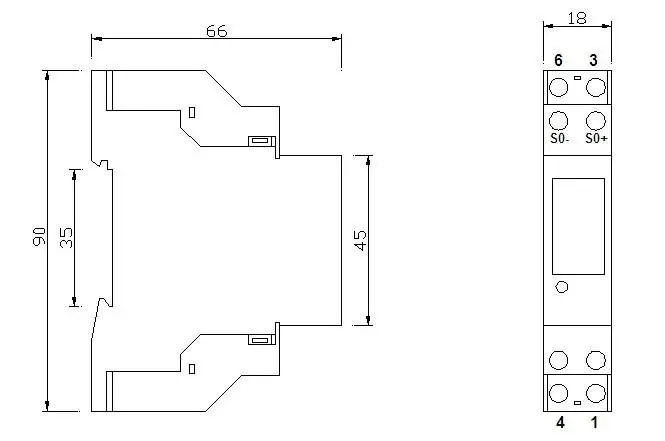

Dimension: 1 modular 18mm width. 90mm length, 66mm height


Display:Analog display 6+1digits ( 999999.9 kWh )



Energy meter test impulse: 2000imp/kWh   (LED flash)



Standard configuration pulse output passive ( polarity )



Standard working voltage: AC220V ~ AC240V ,  50Hz  / 60Hz (Frequency)



Standard current range 5-32A   5-50A



Date storage: at least 10 years







Optional Function



1.Communicate data collection via RS485 Modbus RTU protocol ( 1200~9600bps )



1.1  Communicate data collection via RS485 DLT645-1997 & DLT645-2007 protocol with infrared communication



2.Voltage (V); Current (A); Frequency ( Hz ); Power (KW); Power factor (COS)



3.LCD blue screen back light  ( Used in dark place  )



4.Optional voltage: 110V 120V  60Hz



5. Optional Current: 5(50)A







Our Services



we supply product with good quality and serivces as:



1. OEM



2. ODM



3.HUABANG Distributor





Diagram:

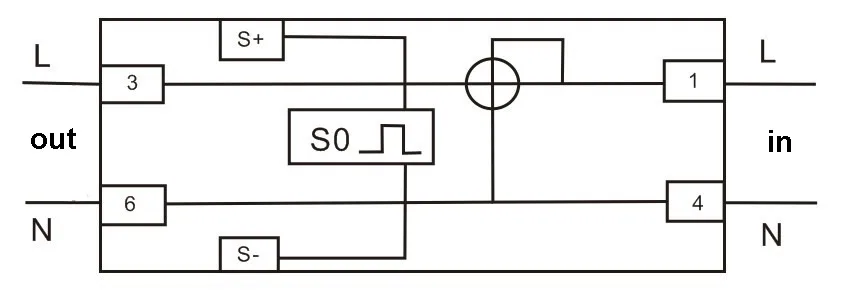

Connection-1  ( 32A )

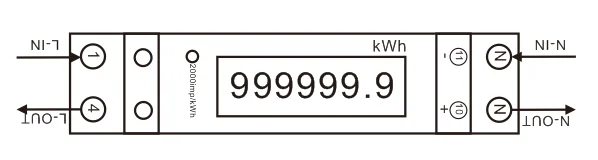

Connection-2  ( 50A )







Packaging & Shipping



MOQ1pcs
Package 100pcs per carton
Size 46.5x26x27mm
Gross Weigth 13Kg





FAQ

FAQ:

1. Q: Why choose us?

    A: We are professional energy meter manufacturer 24years and 15years golden supplier of Alibaba

2. Q: Do you have any certificates

    A: We have CE, RoHS, CCC, CQC, ISO9001:2015 Certification.

3. Q: How about your products quality inspection?

    A: We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.

4. Q: Can you accept to use our logo?

    A: we accept OEM and ODM production and can make customized product.

5. Q: What’s your quality guarantee?

    A: we provide repair or replace service within 18months if energy meter is not working  properly.
