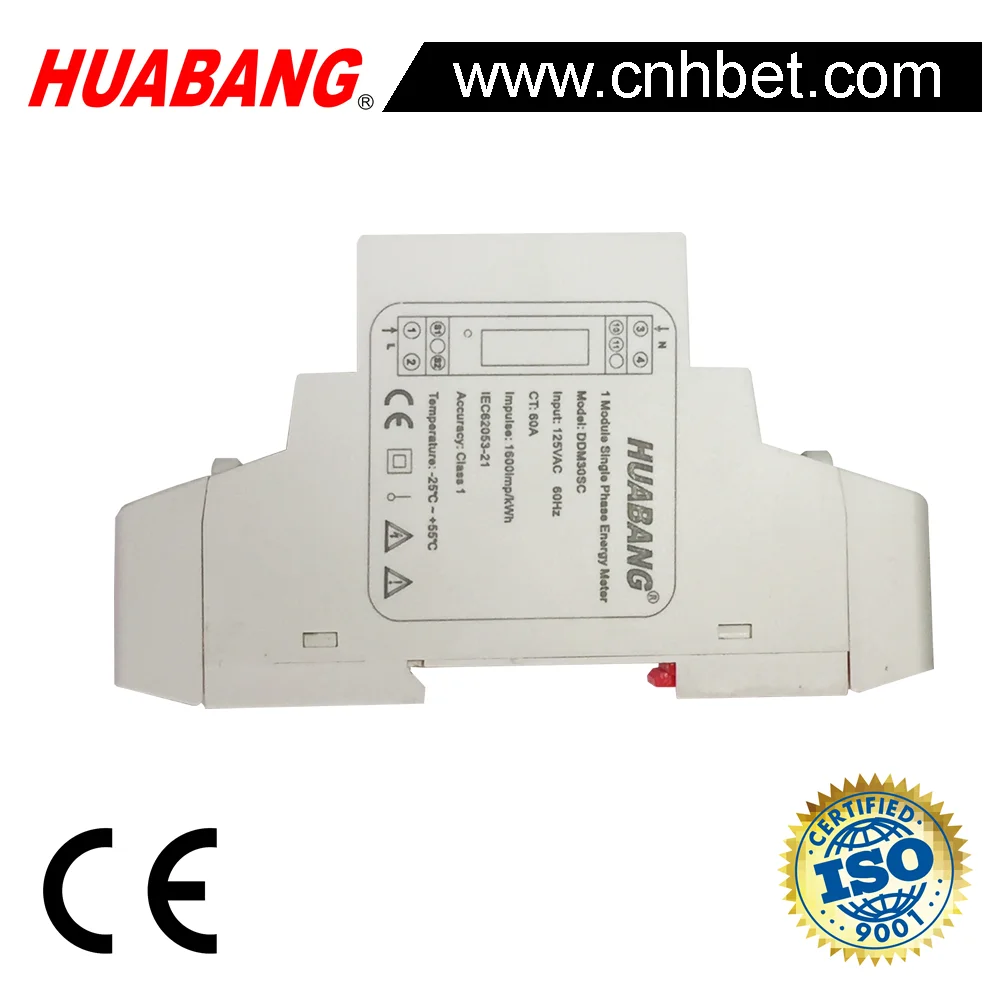

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: HUABANG
  • Model Number: DDM30SC-CT
  • Display Type: Digital Only
  • Phase: Single Phase
  • Measuring Energy Range: 0-999999.9
  • Accuracy Class: Class 1
  • Output Voltage: 120v/220v/230v/240v
  • Operating Temperature: -10°C ~ +60°C
  • Dimensions: 90x60x18mm
  • Type: DIN Rail Mounting Energy Meter
  • Display: LCD Display 6+1
  • Rated Current: open core current transformer 60A
  • Frequency: 50HZ/60HZ
  • Standard: IEC62053-21
  • Certificate: CE ROHS LVD

Packaging & Delivery

Packaging Details EXPORT PACKAGE WITH INNER PAPER BOX
Delivery Time 5 DAYS AFTER ADVANCE PAYMENT
Company Information



Din Rail Meter

 INTRODUCTION



Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.



HUABANG have a complete range of DIN-mounted electricity meters for different applications, together with a wide range of communication options. The meters are quick and easy to install due to their DIN-rail mounting.



It is highly accurate, durable, reliable, lower power consumptive, without reversion, creep proof, anti-tanmpering and bilateral recoring with strong overloading capability. It conforms to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21 also pass EMC and LVD.



TECHNICAL SPECIFICATION

Voltage AC (Un)   110/220/230/240V
Voltage range -20% to +20% of Un
Base current(Ib)5A, 10A
Max current(Imax)50A, 60A, 80A, 100A
Starting current (mA)0.4%Ib
Power consumption of current ≤2W / 10VA
Frequency (Hz)

 50/60 (±10%)

AccuracyClass 1
Memory back-up EEprom
Operating Temperturer -10°C to +50°C
Storing Temperturer -30°C to +70°C
Meter Case MaterialABS, Polycarbonate
Operating humidity75%
Storing humidity95%
Protection against dust and water IP51
Insulating encased meter   II
AC voltage withstand     2KV for 1 minute
Impulse voltage withstand   6KV – 1.2µS waveform
Current withstand   30Imax for 0.01s
Pulse output rate   ( imp/kWh )3200,2000,1600,800,400





OPTIOANL FUNCTION IN DISPLAY AND READING: kWh, V, A, P, F, PF,



OPTIONAL FUNCTION IN COMMUNICATION: MODBUS RTU



OPTIONAL FUNCTION FOR REMOTE ELECTRIC METER STOP ( POWER ON AND OFF )







PACKING LIST FOR ALL KINDS OF DIN RAIL METER





No.Quantity/CTNSize Weight
1 modular100pcs47x26x27cm12kg
2 modular 80pcs46x23.5x37.5cm13.5kg
4 modular40pcs46x23.5x37.5cm13.5kg
7 modular24pcs46x23.5x37.5cm13.5kg



 DIMENSION











FAQ



1. Q: Why choose us?

    A: We are professional energy meter manufacturer 24years and 15years golden supplier of Alibaba

2. Q: Do you have any certificates

    A: We have CE, RoHS, CCC, CQC, ISO9001:2015 Certification.

3. Q: How about your products quality inspection?

    A: We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.

4. Q: Can you accept to use our logo?

    A: we accept OEM production and can make customized product.

5. Q: What’s your quality guarantee?

    A: we provide repair or replace service within 18months if energy meter is not working  properly.
