Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: HUABANG
  • Model Number: DDM100S
  • Display Type: Analog Only
  • Phase: Single Phase
  • Measuring Energy Range: 0-99999.9kWh
  • Accuracy Class: Class 1.0
  • Output Voltage: 230V
  • Operating Temperature: -40℃ ~+75℃
  • Dimensions: 75x88x73.5mm
  • Start Current: 0.004Ib
  • installation: 35mm din rail watt hour meter
  • Type: din rail electric meter
  • Certificate: ISO9001 CE ROHS
  • Standard: IEC62052-11/IEC62053-21
  • Frequency: 50HZ
  • Display: register display 5+1
  • Rated Current: 5-60A

Packaging & Delivery

Packaging Details watt hour meter Packaging Detail: Inner package write paper box and marketing label or per clients brand
Delivery Time 3 days after payment received



Company Information





Din Rail Meter

 INTRODUCTION



Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.



HUABANG have a complete range of DIN-mounted electricity meters for different applications, together with a wide range of communication options. The meters are quick and easy to install due to their DIN-rail mounting.



It is highly accurate, durable, reliable, lower power consumptive, without reversion, creep proof, anti-tanmpering and bilateral recoring with strong overloading capability. It conforms to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21 also pass EMC and LVD.



TECHNICAL SPECIFICATION

Voltage AC (Un)   110/220/230/240V
Voltage range -20% to +20% of Un
Base current(Ib)5A
Max current(Imax)60A
Starting current (mA)0.4%Ib
Power consumption of current ≤2W / 10VA
Frequency (Hz)

 50/60 (±10%)

AccuracyClass 1
Memory back-up EEprom
Operating Temperturer -40°C to +60°C
Storing Temperturer -40°C to +70°C
Meter Case MaterialABS, Polycarbonate
Operating humidity75%
Storing humidity95%
Protection against dust and water IP51
Insulating encased meter   II
AC voltage withstand     2KV for 1 minute
Impulse voltage withstand   6KV – 1.2µS waveform
Current withstand   30Imax for 0.01s
Pulse output rate    1600imp/kWh









PACKING LIST FOR ALL KINDS OF DIN RAIL METER





No.Quantity/CTNSize Weight
1 modular100pcs47x26x27cm12kg
2 modular 80pcs46x23.5x37.5cm13.5kg
4 modular40pcs46x23.5x37.5cm13.5kg
7 modular24pcs46x23.5x37.5cm13.5kg

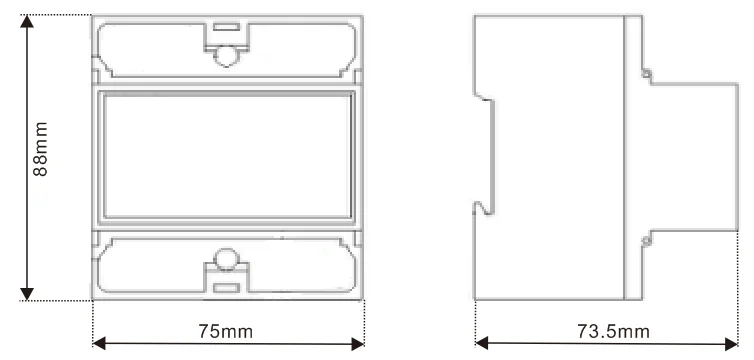

 DIMENSION











Company profile

WHO WE ARE ?



HUABANG, one of leading producer of lower voltage products such as Energy Meter, Current Transformer, Frequency Inverter, Soft Starter, Power Meter, We specializes in research, design and manufacturing with an emphasis on continuous improvement, innovation and high performance and cost-effective solutions HUABANG has developed as a global manufacturer.


We are committed to providing high quality, high performance products to our customers
