1 phase digital watt hour meter Single phase electronic electricity meter

FOB Reference Price:Get Latest Price
US $1-10 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HUABANG
Model Number:
DDS228
Display Type:
Digital Only
Phase:
Single Phase
Measuring Energy Range:
10(40)A 15(60)A 20(80)A 30(100)A
Accuracy Class:
Class1
Output Voltage:
110v/220v/230v/240v
Operating Temperature:
-25℃ ~ +70℃
Dimensions:
142x108x56mm
Product name:
digital electric meter hack
Display:
LCD Display
Frequency:
50HZ/60HZ
Certificate:
ISO9001CE ROHS
Standard:
IEC62052-11/IEC62053-21
Name:
Single Phase Electric Meter
Type:
Energy Digital Kwh Meter
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Each Meter have own foam box, and 20pcs per carton
Port
Ning bo or Shang hai
Lead Time :
3 working days after receive payment
Company Information

.png

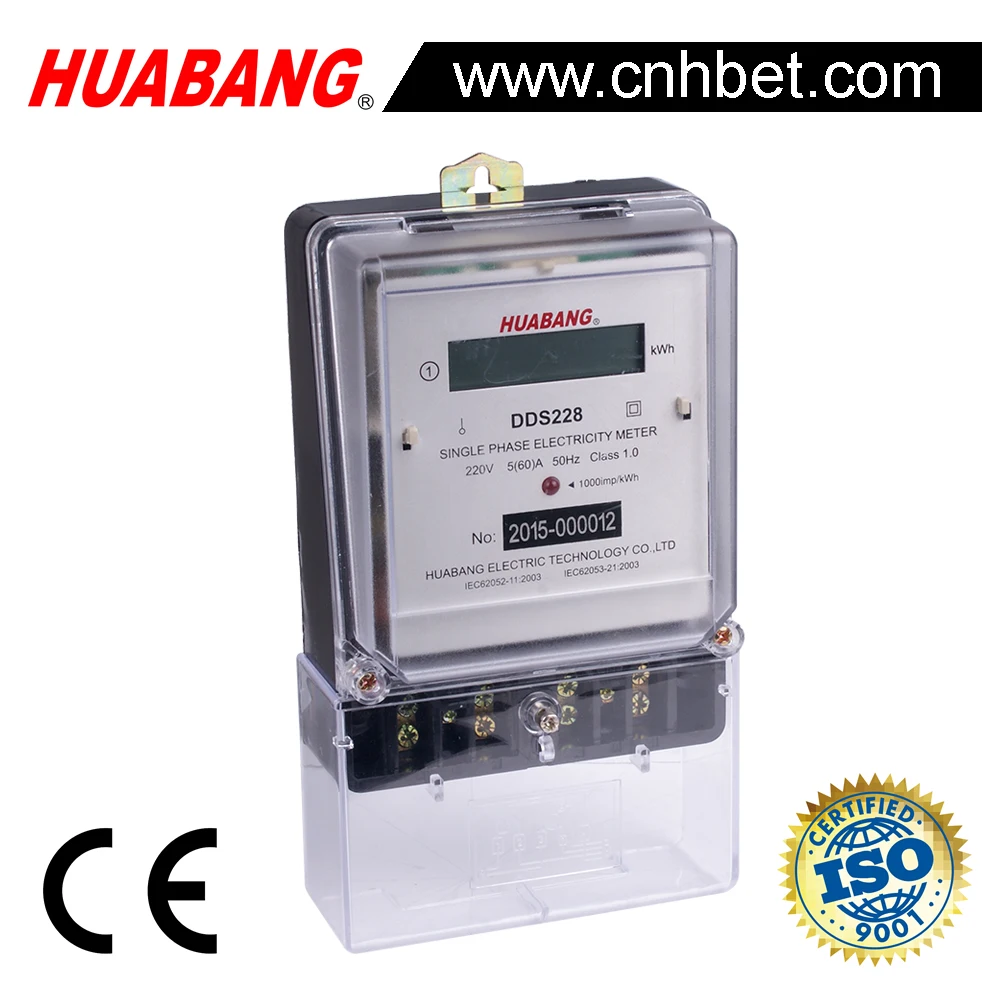

DDS228 Energy Meter

INTRODUCTION



DDS228, Single phase two wire active electronic kilowatt-hour meter is designed for electricity utilities residential to measure 50/60 Hz active energy consumption, the meter developed by microelectronic technology and special large-scale integrated circuits, processing by SMT technology. The Meter is adopt high reliable and long-life electric components, hi-overload, no need re-calibrate for long term operation





DDS228B, Single phase three wire active electric meter the main function is the same as two wire meter, but the this special meter have two phase line, but no neutral wire, designed for electricity utilities residential to measure 60 Hz, the meter normally used in Philippines and South American.



FUNCTIONS



Installation: Front board three fixed installation

Meter cover: Transparent ABS anti flaming or transparent PC

Meter base: ABS anti flaming

Terminal Cover: ABS anti flaming or transparent PC

Display: Cyclometer 5+1 digits or LCD display 6+1 digital

Standard configuration one port of pulse output passive (polarity)

Forward active energy and reverse active energy measurement

Meter comply with international standard IEC62053-21 & IEC62052-11

Dimension: 108mm width, 142mm length, 56mm height



Optional Function



1. RS485 communication MODBUS protocol, 1200 ~ 9600bps

2. Voltage (V); Current (A); Frequency ( Hz ); Power (KW); Power factor (COS)

3. Display readable without Power ( RWP )

4. Remote control meter power on & off



Technical specification



Model NO.

DDS228- single phase two wire energy meter

Accuracy

Class 1

Rated Voltage

110/220/230/240V

Rated current

5(60)A; 10(100)A
Starting current0.4%IB

frequency

50/60Hz

Power consumption

 2W / 10VA

Impulse constant

 800 / 1600imp/kWh
Relative humidity 85%



Model NO.

DDS228B- 1 phase 3 wire electric power meter

Accuracy

Class 1

Rated Voltage

110/220V, 120/240V

Rated current

5(60)A; 10(100)A
Starting current0.4%IB

frequency

50/60Hz

Power consumption

 2W / 10VA

Impulse constant

 800 / 1600imp/kWh
Relative humidity 85%

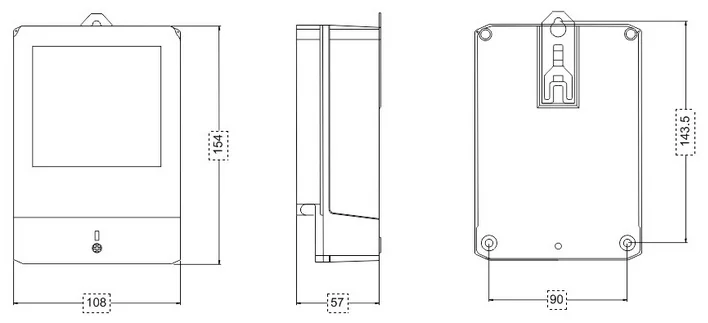

Dimension:



.png



Recommend Product:




Company profile

WHO WE ARE ?



HUABANG, one of leading producer of lower voltage products such as Energy Meter, Current Transformer, Frequency Inverter, Soft Starter, Power Meter, We specializes in research, design and manufacturing with an emphasis on continuous improvement, innovation and high performance and cost-effective solutions HUABANG has developed as a global manufacturer.


We are committed to providing high quality, high performance products to our customers






FAQ

 1. Q: Why choose us?

    A: We are professional energy meter manufacturer 24years and 15years golden supplier of Alibaba

2. Q: Do you have any certificates

    A: We have CE, RoHS, CCC, CQC, ISO9001:2015 Certification.

3. Q: How about your products quality inspection?

    A: We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.

4. Q: Can you accept to use our logo?

    A: we accept OEM production and can make customized product.

5. Q: What’s your quality guarantee?

    A: we provide repair or replace service within 18months if energy meter is not working  properly.
