China Energy saving ac motor variable frequency mppt inverter power inverter 75kw

FOB Reference Price:Get Latest Price
US $1,150-1,300 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HUABANG
Model Number:
VFD0750A43G/P
Output Power:
75kW
Output Type:
Triple
Size:
460x755x330mm
Weight:
80kg
Input Voltage:
AC 0-380V
Output Voltage:
AC 380V
Type:
AC inverter
Output Frequency:
0-400HZ
Output Current:
150A
Product name:
Low Frequency Solar Inverter
Application:
Solar Power System Home
Certificate:
CE ISO9001 CE CCC
Warranty:
12 Months
Protection:
Short Circuit, Overload, Overvoltage
Display:
LCD Display
Rated power:
75kW
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Foam and plywood box, one pcs per carton
Port
Ningbo / Shanghai
Lead Time :
5days
Company Information





VFD inverter

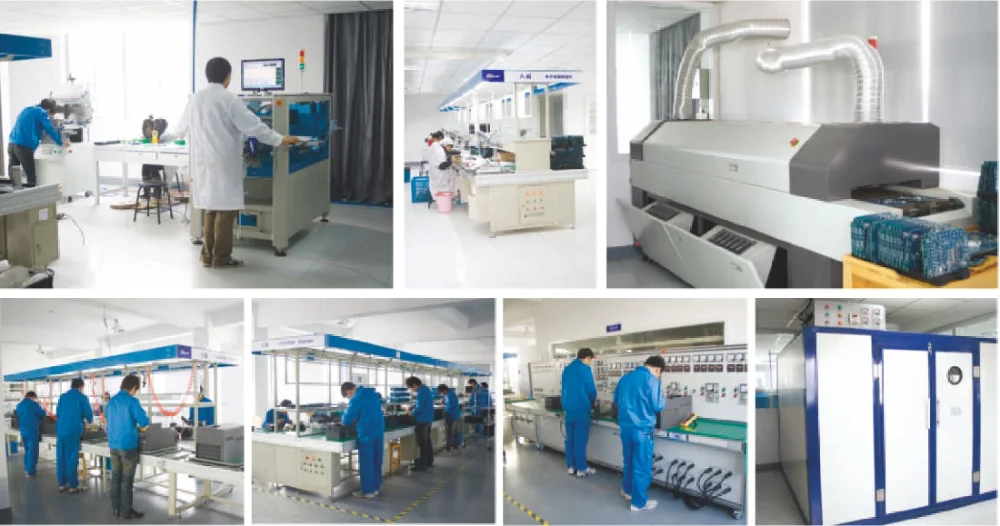

Workshop





Adopt DSP control system, Achieve speed-less sensor vector control, able to suppress the low-frequency shock effectively.
Main used for blower and water pump which is highly accuracy of speed and torque response and the low frequency occasions.



TECHNICAL SPECIFICATION



1. Application

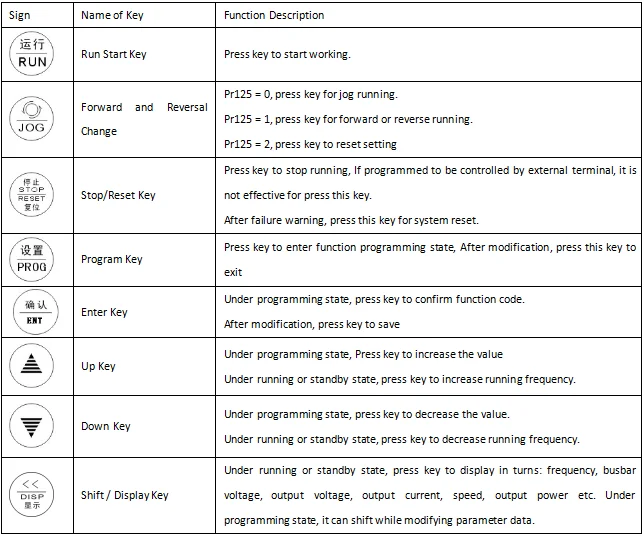

2. Main interface





3.  Technical index



1. Available with Normal / dormant / sewage pump, achieve max eight pumps control;
2. Control module integrated clock chip, power supply can be configured to facilitate the realization of timing constant pressure control;
3. Eight period of pressure set, adapt to changes in the actual water needs;
4. Sleep, regular rotation. Automatically shut down for energy-saving operation,
5. Intake pool water level control, prevent secondary pollution of water sources;
6. Pipeline over / under voltage protection, auto-complete fault pump recording and backup pump switching;



4. Wiring diagram

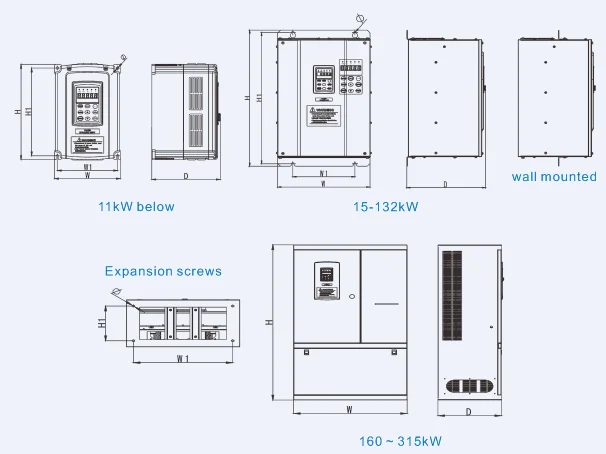

5. Dimension









Company profile

WHO WE ARE ?



HUABANG, one of leading producer of lower voltage products such as Energy Meter, Current Transformer, Frequency Inverter, Soft Starter, Power Meter, We specializes in research, design and manufacturing with an emphasis on continuous improvement, innovation and high performance and cost-effective solutions HUABANG has developed as a global manufacturer.


We are committed to providing high quality, high performance products to our customers
